BCZ8030 series
Explosion-corrosion-proof plug socket device
1. It is widely used in flammable and explosive gas environment such as oil exploitation, refining, chemical industry, offshore oil platform, oil tanker, etc. It is also used in flammable dust places such as military industry, port, grain storage and metal processing;
2. Applicable to Zone 1 and Zone 2 of explosive gas environment;
3. Applicable to IIA, IIB, IIC explosive gas environment;
4. Applicable to areas 21 and 22 of flammable dust environment;
5. Applicable to corrosive gases, moisture, and high protection requirements place;
6. Applicable to the temperature group is T1 ~ T6;
7. Applicable as a connection device for cables and electrical equipment in AC 50HZ, voltage to 690V (380V) lines.

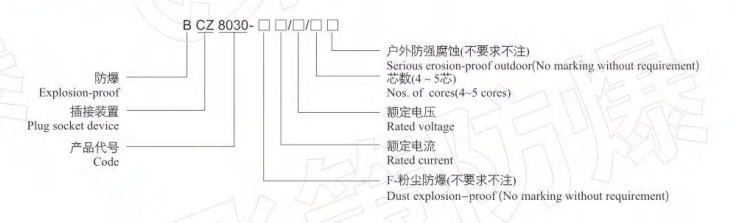

Model Implication
Features
1. Explosion-proof type is a combination of increased safety and explosion-proof structure.
2. The outer shell is molded with glass fiber high-strength unsaturated polyester resin (SMC), which has the properties of corrosion resistance, impact resistance and thermal stability.
3. When the rated current is 63A, the number of cores is divided into 4 cores and 5 cores. When the rated current is 125A, the number of poles is 5 cores. Users can choose according to their needs.
4. Has a reliable interlock function, that is, after the plug is inserted into the base body, the plug should be rotated so that the arrow on the plug is aligned with the “I” meter, and the plug cannot be pulled out; only the rotary plug aligns the arrow on the plug. The O" watch is cut off and the plug can be pulled out.
5. The plug has reliable contact performance and long service life. The socket in the socket has a flexible louver spring sleeve (made of beryllium bronze and heat treated) to make the plug have self-cleaning characteristics to ensure small contact resistance and The low temperature rises, and the required insertion force is also minimized. The design of the louver spring sleeve ensures the normal function of the plug and socket and the permanent self- cleaning effect, which solves the influence of the plug on the surrounding environment during use (such as Humidity and dust) ensure the electrical transmission performance of the plug.
6. The switch handle is equipped with a padlock, which can be locked when not in use. The switch cannot be turned on at this time.
7. All exposed fasteners are made of stainless steel.

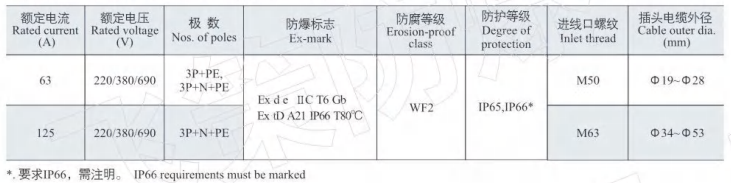

Main Technical Parameters
