FCPB-Series
Intrinsically safe industrial-grade explosion-proof handheld intelligent terminal
1. It is widely used in hazardous environments such as petroleum extraction, refining, chemical industry, military industry, and explosion-proof places such as offshore oil platforms and tankers for wireless intelligent communication terminals.；
2. Suitable for zone 0, zone 1, and zone 2 of Class II explosive gas environments；
3. Suitable for zone 20, zone 21, and zone 22 of Class III explosive dust environment；
4. Explosion-proof mark: Ex ib IIC T4Gb/Ex ib IIC T130°C Db

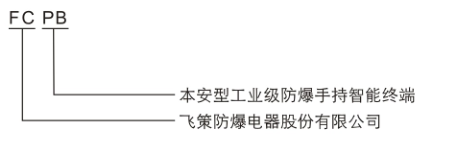

Model Implication
Features
Tiantong satellite Phone: Borderless Communication
Four charging methods: Type-c direct charge + seat charge + magnetic cable charge + DC direct charge
Infrared thermal imaging function/infrared temperature measurement: quickly measure high and low temperature points, infrared temperature measurement range -20°C~380°C
Customizable ID card recognition module: embedded security control module
Hardware intercom/dual time slot DMR digital-analog intercom 1/analog intercom optional: 2 watts U-segment DMR digital-analog intercom, customizable 4 watts/U-segment N-segment/350MHz support SMS function
Each frequency can be customized, optional low frequency (LF) 125KHz, low frequency (LF) 134.2kHz, high frequency (HF) 13.56MHz, ultra-high frequency (UHF) 91SMHz, microwave 2.45GHz, 5.8GHz.
Resolution: TFT 8" FHD+ IPS 1920*1200
Memory: 4GB+64GB/6GB+128GB
Charging time: 5.5 hours
Small card/storage card: (two SIM cards + one Tiantong card + one T card) can support up to 2TB memory card
120 decibel subwoofer speaker: dual noise-canceling microphones
Precise four-mode positioning/Beidou high-precision positioning: GPS+Beidou + Glonass +Galileo
Other functions: infrared remote control glare flashlight
PoC public network intercom: support single call, group call, group call, graphic information transmission, video transmission, precise positioning, dedicated PoC intercom button, anytime, anywhere to call all over the world, one call and one response
One-dimensional & two-dimensional scanning head: two-dimensional: support PDF417, QR Code. Mainstream formats such as Data Matrix、
One-dimensional: Code128, UCC/EAN-128, AIM128, EAN-8, ISBN/ISSN and other mainstream formats recognition depth>5mil
Main Technical Parameters
Specification size:L:243.5mm W:145.5mm H:19.6mm
Hardware platform: MT6765 P35 2.3GHz octa-core (DNT 800)
Support Bluetooth 5.0: 2.4G+5.8G dual-band WIFI
Network standard: 4G/5G full netcom, dual sim and dual standby
Protection level: IP68/IP69K three-proof certification MIL-STD-810H
Camera: rear PDAF 48 million + front 13 million (fl.8 aperture)
Customizable industrial fingerprint: data acquisition module/fingerprint acquisition
M6 external equipment interface: external noise-canceling headset/intercom microphone/RJ45 network port/night vision law enforcement recorder/infrared night vision camera
NFC: 13.56MHZ (the antenna is placed in the battery area; supports ISO15693 and ISO1443A/B protocols, supports read-write mode, card mode, and near-field communication (point-to-point file transfer)
Weight: 900g
Software platform: Android8. 1/Android 11
Battery capacity: 15200mAh
Order Note
1. Choose one by one according to the rules in the meaning of the model.The specific embodiment is: "Product specification model + order quantity".For example, if you need an intrinsically safe industrial-grade explosion-proof handheld intelligent terminal with a quantity of 20 sets, the product model is: FCPB+20.
2. If you have special needs, you need to specify them in detail when ordering.
