BAD63-A series
Explosion-proof high efficiency and energy saving LED lamp
1. widely used in oil extraction, oil refining, chemical industry, military and other dangerous environment and offshore oil platforms, oil tankers and other places for common lighting and working lighting.
2. Suitable for lighting energy saving renovation project and the replacement of difficult places;
3. Suitable for explosive gas environment zone 1, zone 2;
4. Explosive atmosphere: class ⅡA,ⅡB, ⅡC
5. Suitable for combustible dust environment in the area 22, 21;
6. Suitable for high protection requirements, damp places;
7. Suitable for low temperature environment above -40℃.

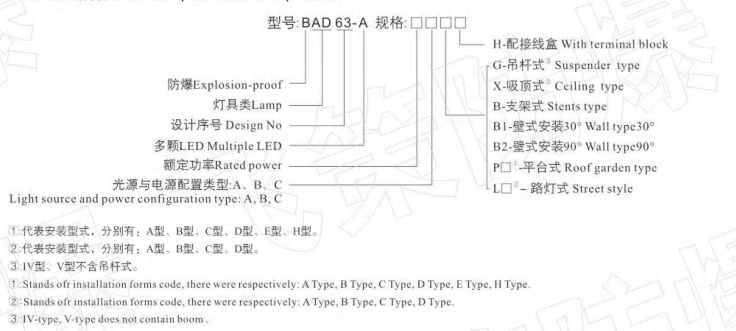

Model Implication
Features
1. Aluminum Alloy die casting shell, the surface electrostatic spray, beautiful appearance.
2. Patented design of multi cavity structure, power supply chamber, light source cavity and wiring cavity three independent of each cavity.
3. Use of borosilicate glass transparent cover or polycarbonate transparent cover, explosion-proof performance and electrical performance and reliable.
4. High corrosion resistance of stainless steel exposed fasteners.
5. Transparent cover fog anti glare design, can withstand high energy shock, heat fusion, light transmittance of up to 90%.
6. Advanced drive technology , wide voltage input, with a constant current, open circuit protection, short circuit protection, surge protection and other functions.
7. The allocation of a plurality of international brand LED module, advanced optical technology, even and soft light, the light effect is ≥ 120lm/w, high color, long life, green environmental protection.
8. With the air flow guiding structure of the cooling air duct, can ensure the life of the LED light source.
9. Advanced sealing technology to ensure that the protection of high demand, wet environment, the normal long-term operation.
Main Technical Parameters
Order Note
1. In accordance with the specifications of the meaning of the rules and regulations to choose one by one, and in the model specifications after the increase of explosion-proof mark. Concrete expression is: "product model - specification code + explosion-proof mark + order quantity". For example, the need for explosion-LED-type lighting 60W, with boom-mounted junction box, the number of 20 sets, the product model specifications: Model: BAD63- Specifications: A60GH + Ex d II C T6 Gb + 20.
2. Refer to pages P431~P440 for the selected mounting styles and accessories.
3. If you have special needs, you need to specify in detail at the time of ordering.
