BAD63-A series
Explosion-proof high-efficiency energy-saving LED lamp (platform light)
1. Widely used in hazardous environments such as oil exploration, refining, chemical, military and Offshore oil platforms, oil tankers, etc. General lighting and work lighting use;
2. Applicable to lighting energy-saving renovation projects and places where maintenance and replacement is difficult;
3. Applicable to Zone 1 and Zone 2 of explosive gas environment;
4. Applicable to IIA, IIB, IIC explosive gas environment;
5. Applicable to areas 21 and 22 of flammable dust environment;
6. Applicable to places with high protection requirements and humidity;
7. Suitable for low temperature environments above -40 °C.

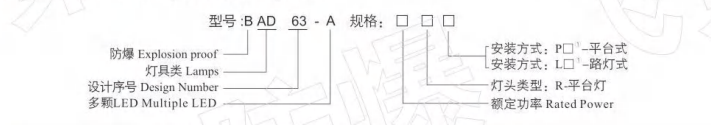

Model Implication
Features
1. Aluminum alloy die-casting shell, the surface is electrostatically sprayed, and the appearance is beautiful.
2. Patented multi-cavity structure, power cavity, light source cavity and wiring cavity The bodies are independent.
3. Adopt high borosilicate tempered glass transparent cover, transparent cover atomization anti-glare design,It can withstand high energy impact, heat fusion, and light transmittance up to 90%.
4. Stainless steel exposed fasteners with high corrosion resistance.
5. Advanced drive power technology, wide voltage input, with constant current, open circuit protection Protection, short circuit protection, surge protection, and other functions.
6. Configure multiple international brand LED modules, advanced light distribution technology, light Uniform and soft, light effect ≥120lm/w, high color rendering, long life, green Environmentally friendly.
7. Heat-dissipating air duct with air guiding structure to ensure the LED light source Life expectancy.

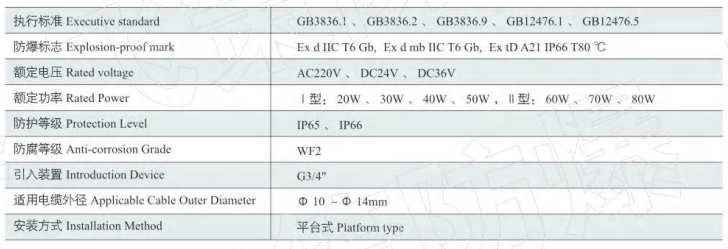

Main Technical Parameters
Order Note
1. Select one by one according to the rules in the meaning of the model specifications, and add the explosion-proof mark after the meaning of the model specification. The specific embodiment is: "product model - specification code + explosion-proof mark + order quantity". For example, if the explosion-proof potted platform lamp 30W is required and the number is 20 sets, the order is: "Model: BAD63-Specification: A30P+Ex d mbIIC T6 Gb+20".
2. For the selected installation form and accessories, see P431~P440 in the Lamp Selection Manual.
3. If there are special needs, please specify in the order.
