1. The shell is made of high-quality cast aluminum alloy die-casting, which has the characteristics of smooth surface, fine internal structure, light structure, strong impact resistance, etc. The surface of the shell is electrostatically sprayed after high-speed shot blasting, and the appearance is beautiful.

2. The light source cavity shell of the lamp adopts a cold-forged integrated radiator structure, and its thermal conductivity is about 209WM.K. The multiple heat dissipation cylinders constituting the main body of the radiator are arranged in a plane matrix, which can achieve 360-degree ventilation and heat conduction in any direction, thereby The heat dissipation performance is greatly improved, so that the explosion-proof LED lamps can work stably for a long time at room temperature, thereby effectively reducing the light decay of the LED lamp beads during use, and ensuring the quality of the lamps.

3. Patented multi-cavity structure, the three cavities of power supply cavity, light source cavity and wiring cavity are independent.

4. The entry line of the lamp adopts the patented technology of wireless connection with independent intellectual property rights, which makes the installation, use and maintenance of the lamp more convenient and safer.

5. The light source board is integrated with multiple LED light source chips. The brand can choose Osram or Kerui, one-way light, uniform and soft light, light efficiency ≥1201m/w, high color rendering, long life, and environmental protection.

6. The LED drive device can choose MEAN WELL or MOSO brand, wide voltage input, with constant current, open circuit protection, short circuit protection and other functions.

7. The lens has high luminous efficiency, atomized anti-glare design, and large light-emitting angle.

8. High-strength toughened glass transparent cover, can withstand 4J energy impact, resist thermal fusion, and transmit light up to 90%.

9. It can be equipped with an emergency control device, when the power supply is cut off, it will automatically switch to the emergency lighting state.

10. Advanced sealing technology to ensure long-term operation in a humid environment with high protection requirements.

11. High power factor cos≥0.95.

12. Stainless steel exposed fasteners with high corrosion resistance. 13. Both steel pipe and cable wiring are acceptable.

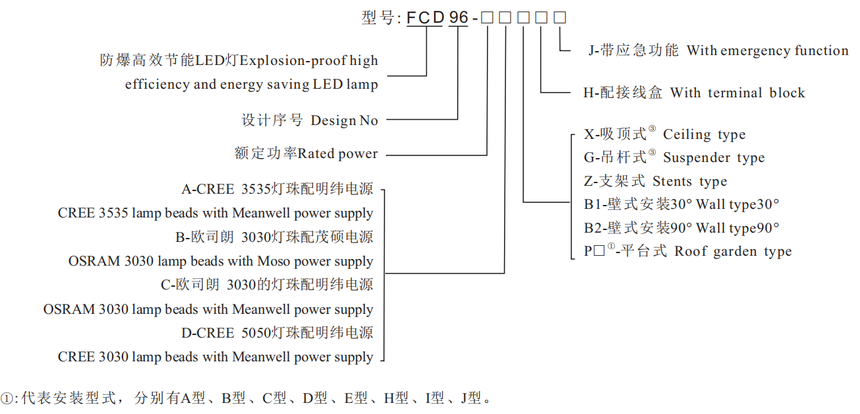

1. Select one by one according to the rules in the meaning of the model, and add the explosion-proof mark after the meaning of the model. It is specifically embodied as: "product specification model code + explosion-proof mark + order quantity". For example, explosion-proof LED lamp 60W, stretched shell, light source and power supply configuration are A, boom type installation with junction box, the quantity is 20 sets, then the product model is: BAD63-A60ALGH+Ex d ⅡC T6 Gb+20.

2. Please refer to "Installation Accessories Table 1 / Table 4" for the accessories required for the selected installation form of lamps; (see P435~p436)

3. If there are special requirements, please specify in detail when ordering.
