FC-D-0.5KVA series
Centralized power supply for emergency lighting (special emergency power supply for fire emergency lamps)
1.It is widely used in dangerous places such as oil exploitation, oil refining, chemical industry and military industry to provide emergency power supply for evacuation equipment such as centralized control fire emergency marker lamp and centralized control fire emergency lamp;
2.Suitable for explosive gas environment zone 1, zone 2;
3.Explosive atmosphere: class ⅡA,ⅡB, ⅡC;
4.Suitable for combustible dust environment in the area 22, 21;
5.Suitable for high protection requirements, damp places;
6.It is applicable to the temperature environment of - 40 ℃~ + 40 ℃.

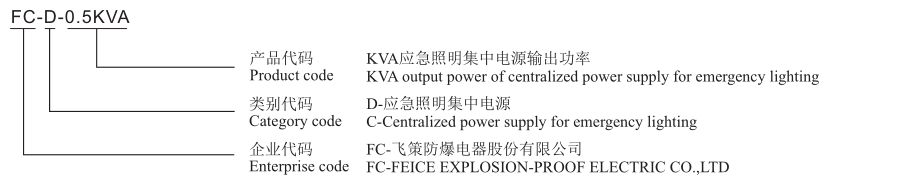

Model Implication
Features
1. The emergency lighting controller is composed of industrial computer, fire power module, communication circuit module and backup power supply. Among them, the industrial computer receives Fas fire alarm signal, and the communication module is equipped with 8 circuits.
2. As the main control equipment, the emergency lighting controller, together with the centralized power supply for emergency lighting (special emergency power supply for fire emergency lamps), the centralized fire emergency lighting lamps and the centralized fire emergency lighting sign lamps, constitutes a centralized fire emergency evacuation indication system.
3. Real time monitoring and management of terminal equipment data and status.
4. Intelligent network analysis, guide the terminal to indicate the evacuation direction, provide the best and safest escape path and light up the lighting lamps, or guide according to the preset scheme.
5. It can save the working log records of the operating system, the data storage capacity is greater than 10000, and the storage time after the system power down is greater than 10 years.
6. Display fault information, including fault type, time and location, and give audible and visual signal alarm.
7. Monitor the battery status, output status and input status of emergency power supply at any time.
8. Can bus communication is adopted between the host and the centralized power supply.
9. It can be seamlessly connected with FAS fire alarm system.
10. The software interface is friendly, the human-computer interaction is simple, and the menu is equipped with software startup; Interface introduction; set up; Place, modify, delete and find; Command; Query history; Linkage and other pages, the operators can master the software functions and complete the system networking debugging after simple training.

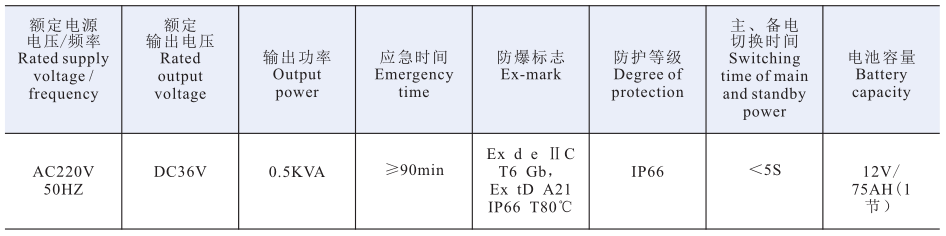

Main Technical Parameters
Order Note
1.Select one by one according to the rules in the meaning of the model and indicate the explosion-proof signs. For example, if the centralized power supply for emergency lighting is required and the power is 0.5KVA, the product model is FC-D-0.5KVA Ex d e C T6 Gb, Ex tD A21 IP66 T80 ℃.
2.If there is any special demand, it shall be specified in detail when ordering.
