ABSg series
Explosion-proof tank inspection lamp
1. Widely used in oil extraction, oil refining, chemical, military and other dangerous places for local observation lighting purposes;
2. Suitable for explosive gas environment zone 1, zone 2;
3. Explosive atmosphere: class ⅡA,ⅡB, ⅡC;
4. Suitable for combustible dust environment in the area 22, 21;
5. Suitable for high protection requirements, damp places.

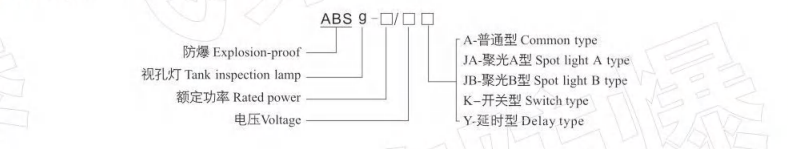

Model Implication
Features
1. The enclosure is made of aluminum alloy. It is moulded by the high strength aluminum alloy for one time,which has high strength, fine explosion-proof functions. Its exterior has sprayed with plastic by high pressure static after shot blasting at high speed, which has great corrocion proof and beautiful appearance.
2. The toughened glass cover has great transmittance. Outer fasteners are made of stainless steel.
3. In the spotlight,there are electronic regulator and tungsten halogen lamp of 12V.It has some advantages as following: the lamp voltage output 220V, power voltage 12V,fine light effect, high color rendering index and so on.
4. Wiring with cables.

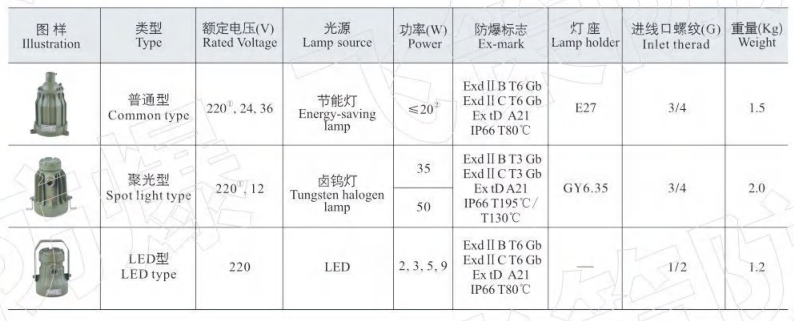

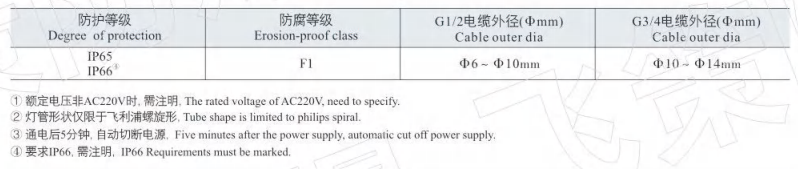

Main Technical Parameters
Order Note
1. Accord with the model implication's rules to select regularly, and Ex-mark should be added behind model implication. The template is as following: code for product model implication+Ex-mark.For example, we need the dust explosion-proof tank inspection lamp with spotlight type JA, power 35W and voltage 12V.The model implication is ABSg-35/12JA+ Ex tD A21 IP66 T130℃.
2. If there are some special requirements, it should be pointed as ordering.
