8058/3 series
Explosion & corrosion-proof circuit breaker
1. Hazardous: division 1&2;
2. Explosive atmosphere: class Ⅱ A, ⅡB, Ⅱ C;
3. Serious erosive gas environment;
4. This product can not use alone it must be used together with other explosion-proof enclosure.

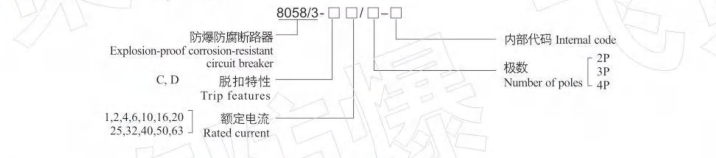

Model Implication
Features
1. The outer casing is made of high-strength, corrosion-resistant, heat-stable glass fiber unsaturated polyester resin or high-strength copper-free aluminum one-time die-casting;
2. Built-in high-breaking miniature circuit breaker or molded case circuit breaker with short circuit and overload protection;
3. The housing is provided with a main terminal contact or is led out by a cable;
4. Product modules can be padlocked

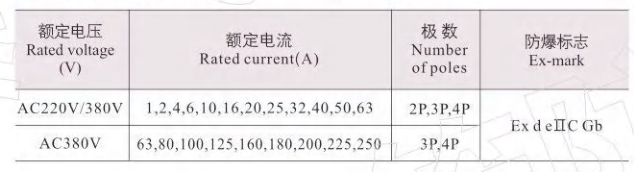

Main Technical Parameters
