SFJX-S series
Water dust&corrosion proof junction board(full plastic enclosure)
1. Areas with more rain, more humidity and heavier salt spray.
2. The working environment is humid and there is a place for water vapor.
3. The altitude does not exceed 2000m.
4. The working environment contains non-flammable dust such as sand and dust.
5. The working environment contains corrosive gases such as weak acids and weak bases.
6. Applicable to petroleum, chemical, food, pharmaceutical, military, warehousing and other places.
7. Connections for lighting, power, control and communication lines.

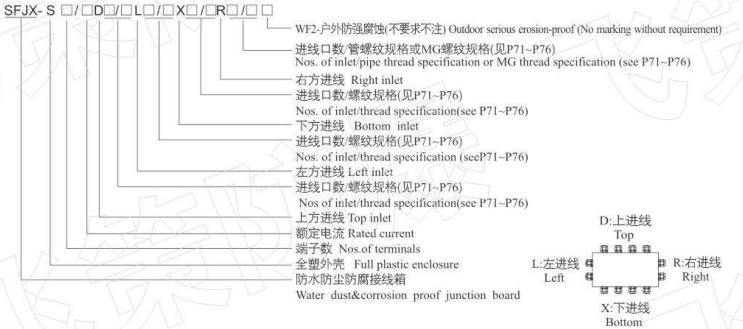

Model Implication
Features
1. The outer casing is made of glass fiber unsaturated polyester resin engineering plastic, which is resistant to strong corrosion and strong impact resistance.
2. Built-in increased safety terminal block. The number of terminals can be configured according to user requirements.
3. All exposed fasteners are made of stainless steel.
4. The cable gland, plug, reducer and corresponding lock nut of all configuration junction boxes are made of brass nickel plated, stainless steel, carbon steel or engineering plastic.
5. The number of granules and plugs can be configured according to the number of incoming and outgoing cables required by the user, and a certain spare granule can be reserved under the premise of space permit, and the hole can be sealed with an explosion-proof metal plug.
6. The cable incoming direction can be made into various forms such as up, down, left, and right according to user requirements.
7. The inlet port is usually made of pipe thread and the cable introduction device is arranged. It can also be made into metric thread, NPT thread, etc. according to the requirements of the user site.
8. Steel pipes and cable wiring are available.
9. The junction box is installed in a hanging mode.

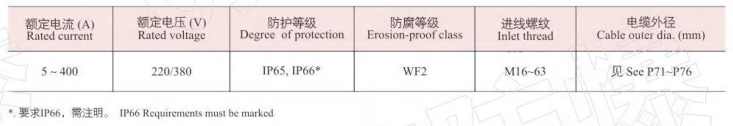

Main Technical Parameters
