SFCG71 series
Waterproof, dustproof and anticorrosive LED lamp (tempered glass transparent cover)
1. More rain all year round,humidity,salt fog heavier areas;
2. The working environment is humid,there is water vapor place;
3. Elevation of not more than 2000m;
4. The working environment contains sand dust,dust and other non-flammable dust;
5. The work environment contains weak acid,weak acid and other corrosive dust;
6. Lighting for energy-saving projects and maintenance of replacement of difficult places;
7. As oil, chemical, food, pharmaceutical, military, warehousing and other places flood lighting, projection lighting or street lighting.
Model Implication
Features
1. Adopt ZL102 copper-free aluminum alloy die-casting shell, electrostatic spray plastic surface, aesthetic appearance.
2. Equipped with international brand LED light source (CREE or OSRAM), LED lens is used for secondary light distribution technology, which has soft light, anti glare, large luminous angle and high light effect, high color rendering, long service life, green and environme- ntal protection, reasonable light distribution and uniform illumination; Light efficiency > 120lm / W, high color rendering, RA > 80.
3. Equipped with brand LED driver (Meanwell or Moso), wide voltage input, with constant current, open circuit protection, short circuit protection, surge protection and other functions.
4. Wide voltage range: 90V ~ 280VAC input, quick start, there is no low temperature caused by difficult to start the problem.
5. The cold forged integrated radiator structure of the lamp has a thermal conductivity of about 209w / M.K. the multiple heat dissipation cylinders constituting the main body of the radiator are arranged in a plane matrix, which can realize 360 ° ventilation and heat condu- ction in any direction, which greatly improves the heat dissipation performance and makes the explosion-proof LED lamp work stably at room temperature for a long time, so as to effectively reduce the light attenuation during the use of LED lamp beads, Better ensure the quality of lamps.
6.Low loss, high efficiency: the overall lamp efficiency is up to 85%, the power factor is up to 0.95, the input frequency range is 47 ~ 63Hz.
7.Patented multi-cavity structure.
8.High borosilicon steel glass transparent cover, impact resistance, can withstand 4J impact, high energy impact, thermal fusion resistance, light transmittance up to 90%.
9.Low electromagnetic and ultraviolet radiation can provide high quality lighting and health protection for users who work indoors for a long time.
10.Stainless steel exposed fasteners with high corrosion resistance.
11.Steel pipes and cable wiring are available.

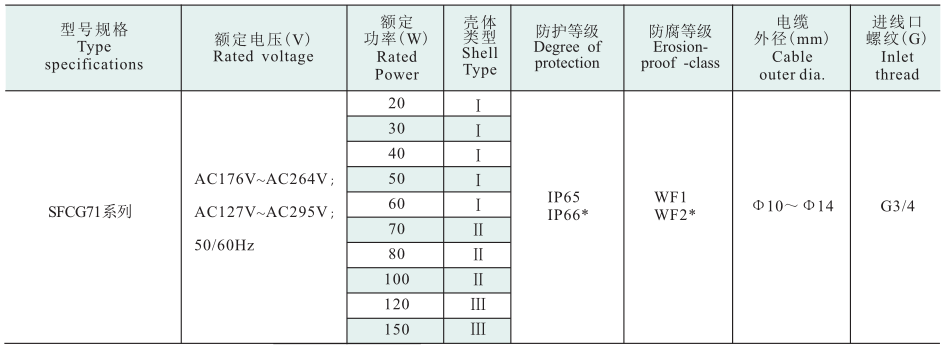

Main Technical Parameters
Order Note
1. Select one by one according to the rules in the meaning of the model specifications, and add the explosion-proof mark after the meaning of the model specification. The specific embodiment is: "product model - specification code + explosion-proof mark + order quantity". For example, if the explosion-proof street light is 30W and the number is 20 sets, the order is: "Model: BAD63-Specification: 20P+Ex d IIC T6 Gb+20".
2. For the selected installation form and accessories, see in the Lamp Selection Manual.
3. If there are special needs, please specify in the order.
